    London Underground Distance Charts

    Please note that all measurements are converted from metric quantities and rounded down to the nearest chain, so small rounding errors may occur when adding up component parts of a journey compared to reading off the table. Metric measurements are taken from the following London Underground Working Timetables: Bakerloo 40, Central 67, Jubilee 13, Northern 55, Piccadilly 54, Victoria 38, Waterloo & City 6, District 147, Hammersmith & City 33 and Metropolitan 337.

    Contents
    1. Bakerloo Line (including London Overground to Watford Junction)
    2. Central Line
    3. Jubilee Line

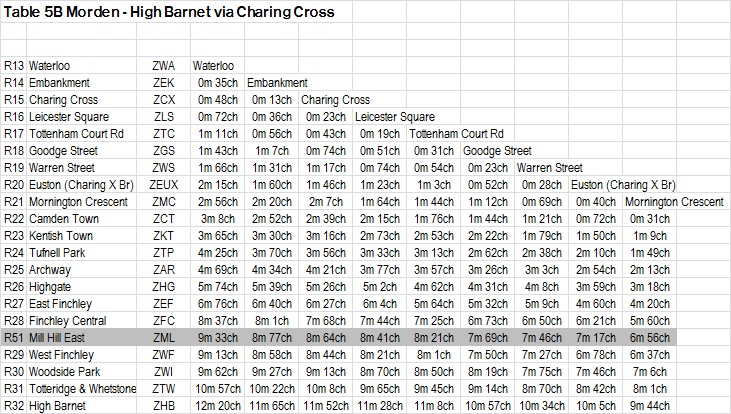

    4. Northern Line

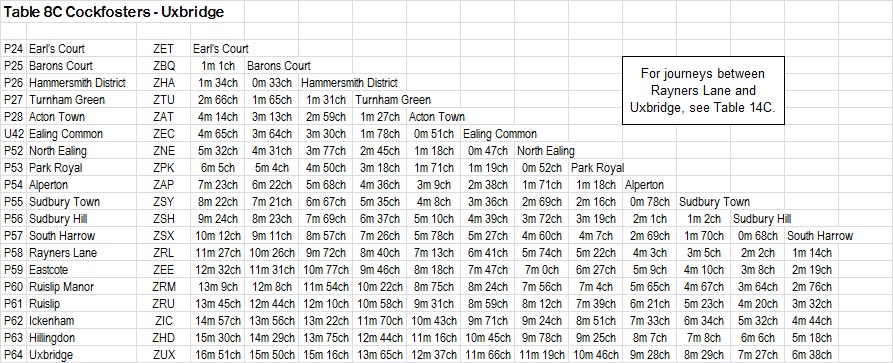

    5. Piccadilly Line
    6. Victoria Line
    7. Waterloo & City Line

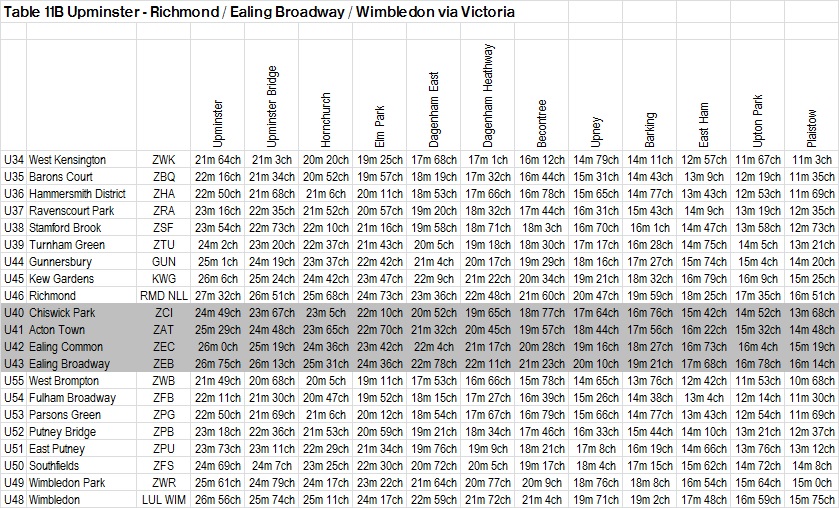

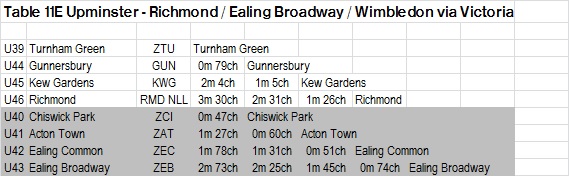

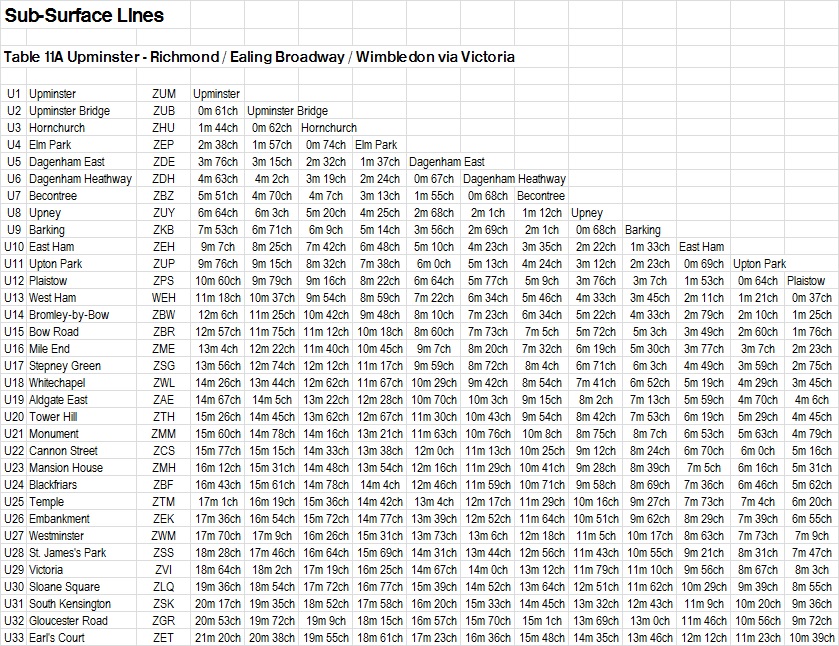

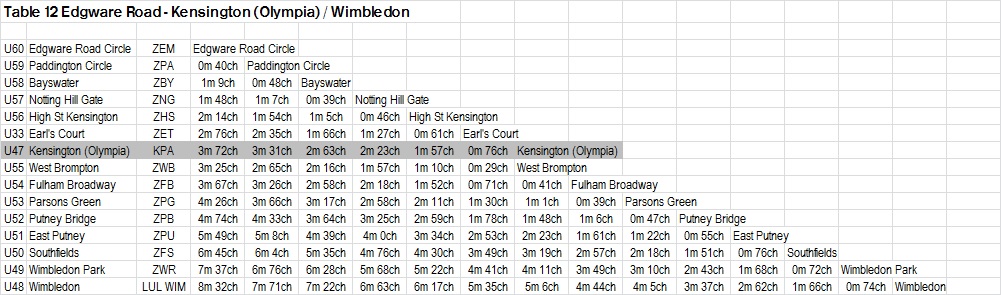

    8. Sub-Surface Railway District Line

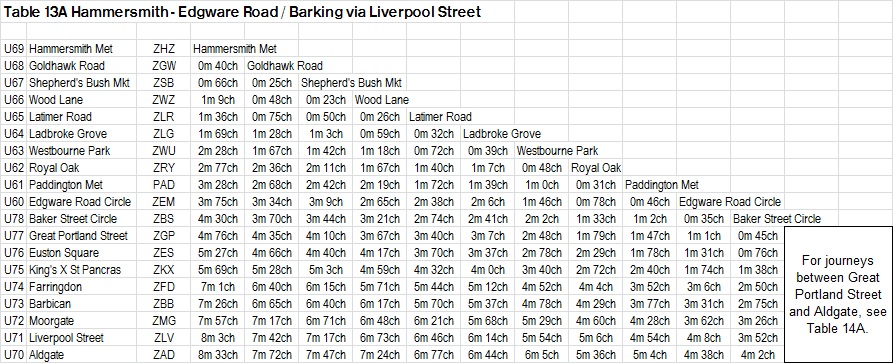

    9. Sub-Surface Railway Hammersmith & City Line Circle Line

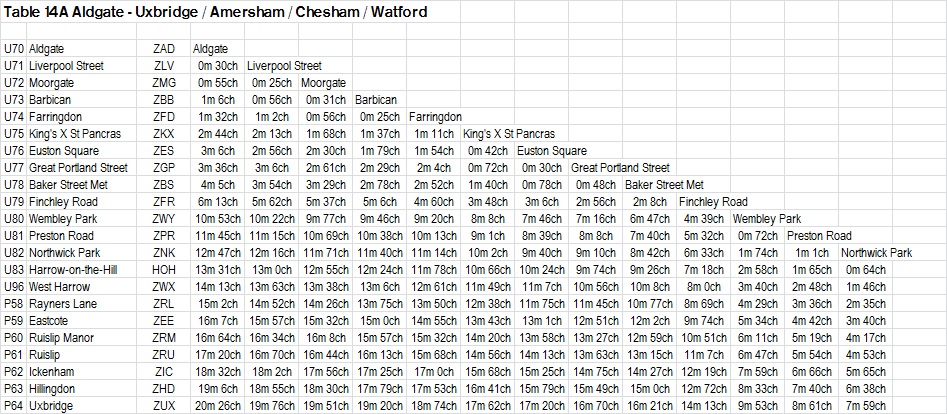

    10. Sub-Surface Railway Metropolitan Line

  2. bb21

    bb21 Moderator Staff Member Moderator

    Messages:
    21,453
    Joined:
    4 Feb 2010
  3. bb21

    bb21 Moderator Staff Member Moderator

    Messages:
    21,453
    Joined:
    4 Feb 2010
  4. bb21

    bb21 Moderator Staff Member Moderator

    Messages:
    21,453
    Joined:
    4 Feb 2010
  5. bb21

    bb21 Moderator Staff Member Moderator

    Messages:
    21,453
    Joined:
    4 Feb 2010
  6. bb21

    bb21 Moderator Staff Member Moderator

    Messages:
    21,453
    Joined:
    4 Feb 2010
  7. bb21

    bb21 Moderator Staff Member Moderator

    Messages:
    21,453
    Joined:
    4 Feb 2010
    [​IMG] [​IMG]

    Last edited by a moderator: 3 Nov 2017
