Mark 2 railway coaches question.

Discussion in 'Traction & Rolling Stock' started by PaxmanValenta, 14 May 2015.

Thread Status:
Not open for further replies.
  1. PaxmanValenta

    PaxmanValenta Member

    Messages:
    122
    Joined:
    11 Apr 2015
    I've always wondered why the air conditioned Mark 2D, E and F were not designated Mark 3 and the present Mark 3 HST and loco hauled designated Mark 4 and so on.

    The reason is that Mark 2 D, E and F are almost completely different from the earlier Mark 2 stock, in terms of technology and interior layout.

    Also why did they not design a proper mark 2 buffet car because old Mark 1 buffets were still often used in Mark 2 sets almost to the early 2000s.

  2. fowler9

    fowler9 Established Member

    Messages:
    6,044
    Joined:
    29 Oct 2013
    Location:
    Liverpool
    This isn't by way of a definitive answer, more a thought. The Mark 2 D, E and F appeared to have a very similar basic body shell to the earlier Mark 2's. It wasn't a radically new design, it was just air conditioned.

  3. 455driver

    455driver Veteran Member

    Messages:
    11,332
    Joined:
    10 May 2010
    The mark 2Cs were also built with the intention of fitting air conditioning but it was never fitted except for 1 coach.

  4. edwin_m

    edwin_m Veteran Member

    Messages:
    10,985
    Joined:
    21 Apr 2013
    Location:
    Nottingham
    I think that's right. The narrower windows without toplights made the Mk2d onwards look very different and more like a Mk3 at first glance, but looking at the ends and the doors in particular, they were very similar to the Mk2c. Even the interiors were similar - Mk2d as built had the seats in fixed pairs with "wings" on the headrests, with trim in black vinyl and even wood effect, not much different from Mk2c. The IC70 seats and more modern interiors came in with Mk2f I think, but could have been Mk2e.

    Last edited: 14 May 2015
  5. 30907

    30907 Established Member

    Messages:
    4,161
    Joined:
    30 Sep 2012
    Location:
    North Lancs Loop
    As to catering vehicles, the Mk 1s were mostly built from about 1960 so were relatively new.
    Conveniently, pre-war restaurant cars were all withdrawn in WW2, which gave them an extra six years' life, which is why the Mk 1s were slow appearing.
    And historically they were low mileage vehicles even in peacetime until more recently.
    There wasn't a business case for withdrawing expensively equipped vehicles.
    However, full meal service was quickly switched from Mk 1s to Mk2 FOs.

  6. ac6000cw

    ac6000cw Established Member

    Messages:
    1,324
    Joined:
    10 May 2014
    Location:
    Cambridge, UK
    AFAIK, all the Mk2s also used the B4 (or B5 in a few cases?) bogie design.

  7. 455driver

    455driver Veteran Member

    Messages:
    11,332
    Joined:
    10 May 2010
    I think all the mark 2s were fitted with B4s, early ones had friction dampers later ones (2Fs only I think) had hydraulic dampers.

    The B5s were used under mark 1 Catering and Sleeper vehicles and later fitted to TPOs.

  8. satisnek

    satisnek Member

    Messages:
    284
    Joined:
    5 Sep 2014
    Location:
    Kidderminster/Mercia Marina
    The way I've always known it:

    2b = wide, wraparound end doors and no centre doors.

    2c = lowered ceiling to accommodate aircon, not fitted.

    2d = aircon, PA, revised (non-opening) windows.

    2e = smaller toilet compartments with luggage racks opposite.

    2f = Mark 3-style interior and seating.

    The Mark 3 had a totally different bodyshell (longer, for a start).

    Last edited: 16 May 2015
  9. Jonny

    Jonny Established Member

    Messages:
    1,292
    Joined:
    10 Feb 2011
    Location:
    Walking distance to CLS
    Exactly - 64 feet (Mark 2) vs 75 feet (mark 3, also mark 4)

    Most Mark 1s were also 64 feet, although shorter variants existed.

  10. jopsuk

    jopsuk Veteran Member

    Messages:
    11,132
    Joined:
    13 May 2008
    As well as very little in the way of catering vehicles, there were no mark 2 sleepers- as again these were lightly used stock in the mark 1 range so didn't need replaced.

  11. edwin_m

    edwin_m Veteran Member

    Messages:
    10,985
    Joined:
    21 Apr 2013
    Location:
    Nottingham
    No Mk2 catering vehicles were built new, though some were converted later. Including, if I recall correctly, one where the sides were thickened internally to represent the APT cross-section, to see if a workable buffet could be provided in the reduced space available.

    When the Mk3 catering cars were built some of them were included in Euston-Birmingham sets that were otherwise Mk2.

  12. craigybagel

    craigybagel Established Member

    Messages:
    1,461
    Joined:
    25 Oct 2012
  13. jimm

    jimm Established Member

    Messages:
    3,167
    Joined:
    6 Apr 2012

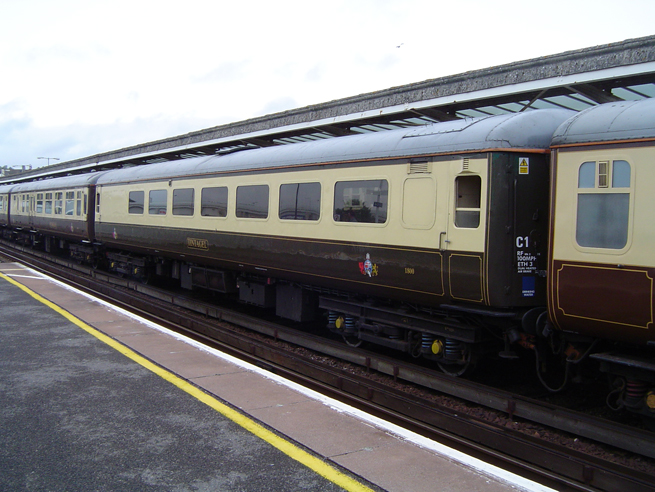

    There were a couple of experimental coaches converted from TSOs in the late 1970s, notably RSS M1800 (formerly M5970), which was, as edwin_m says, to test ideas for APT catering cars. I remember seeing M1800 in service once at Carlisle in about 1978. It was later sold to NIR and rebogied for use on the Enterprise between Belfast and Dublin as No 546, before being returned to the UK and regauged again to become part of West Coast Railways' fleet as 1800 Tintagel. Pic here http://www.railtourinfo.co.uk/images/Coaches/1800weymouth290706.jpg

    Couple of pics of it in InterCity guise at the top of the page here with a mention of the other short-lived conversion http://www.eastbank.org.uk/br_coaches.htm

    In some cases yes, but there were still Mk1 open restaurant cars paired with RKB kitchen-buffets on many ECML expresses until HSTs arrived in 1978 and a few survived on other Eastern Region jobs until 1981.
